What is Bleed, Trim, Margins and Crop Lines?

Have you ever sent your finished file to a Printer who's come back to tell you that your file
doesn't have Bleed? Did you wonder "What is bleed?"

Or perhaps your document was missing Crop Marks?

Hover over the interactive image below to see what Bleed, Trim, Margins and Crop Marks are and click on each for more information as well as how to set up your Print-Ready file using the most common design too, InDesign.

Feel free to share this helpful, interactive Guide!

Note this interactive guide works best on a desktop. Click here for a mobile-friendly guide.

Fashion Spreads

What is  Margin

and How Do I Set It Up in InDesign?

Margin is not used by your Printer so doesn't need to be visible in your Print-Ready file. However, using document Margin is good practice to keep text and important content safely within the page edge and neatly aligned with other elements in your design.

Next: How to set up Margins in a NEW InDesign document


What is  Trim and  Crop Marks ?

and how do I set them up in InDesign?

Screen Shot 2020-06-23 at 12.35.37 pm.pn

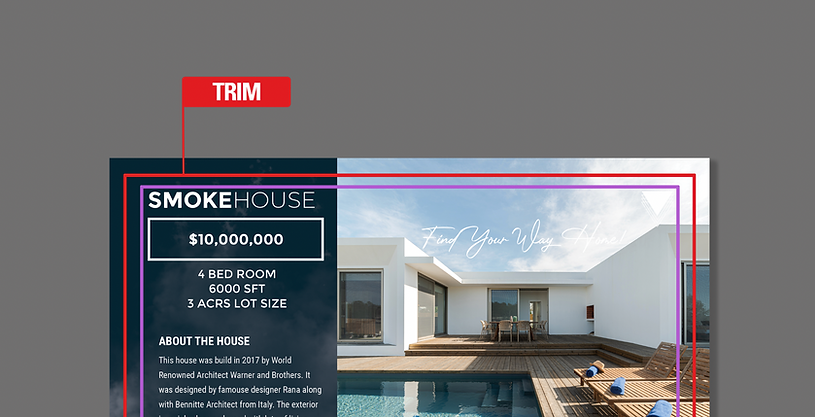

The  Trim Line is a design guide representing the very edge of your page (the finished size) where you want your printer to trim to.

Your image should bleed past this line to ensure no unprinted paper is visible on the edges of your design.


The trim line does not have to be visible in your Print-Ready Artwork but Crop Marks do.

Next: Crop Marks

Fashion Spreads

What is  Bleed

and How Do I Set It Up in InDesign?

Screen Shot 2020-06-23 at 1.24.23 pm.png

 Bleed  provides a buffer, typically 5mm beyond the page edge. This allows for a small margin of error when the printed sheet is trimmed down to the finished size.

Ensuring your document has bleed prevents

unprinted paper (usually white) showing around the edges of your design.


Dragging your background images to the bleed line will ensure an edgeless, flawless print for a professional finish.

Next: Bleed vs No Bleed


What Print-Ready artwork

looks like

Screen Shot 2020-06-24 at 2.52.25 pm.png
